MIL-PRF-15733/34R
NOTES:
1. Dimensions are in inches.
2. Metric equivalents are in parentheses.
3. Metric equivalents are given for general information only.
4. Circuit diagram is for information only.
5. All filters shall be supplied with mounting hardware.
6. Terminal identification (nonsymmetrical filters): The case shall be marked at the threaded end of the filter,
with the symbol "C" or the symbol "L", as follows:
Circuit
Symbol
L1 - - - - - - - - - - - - - - - -
C
L2 - - - - - - - - - - - - - - - -
L
7.
Recommended mounting torque:
48 in-oz (.250-28 UNF-2A).
60 in-oz (.3125-24 UNF-2A).
96 in-oz (.216-32 UNF-2A).
8.
Dash numbers 0003 through 0037 dimension L configuration is shown as a slot. Actual dimension L
configuration shall be as specified in the dimensions table.

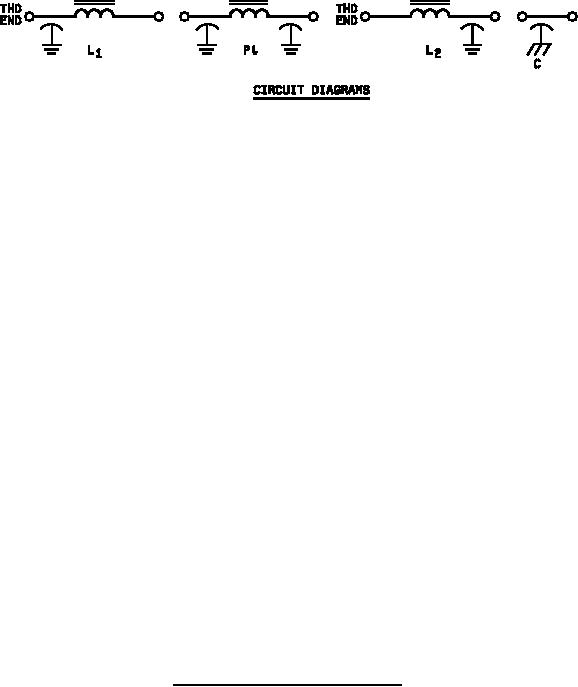

FIGURE 1. Case dimensions and circuit diagrams - Continued.
2
