MIL-STD-1285D

w/ CHANGE 1

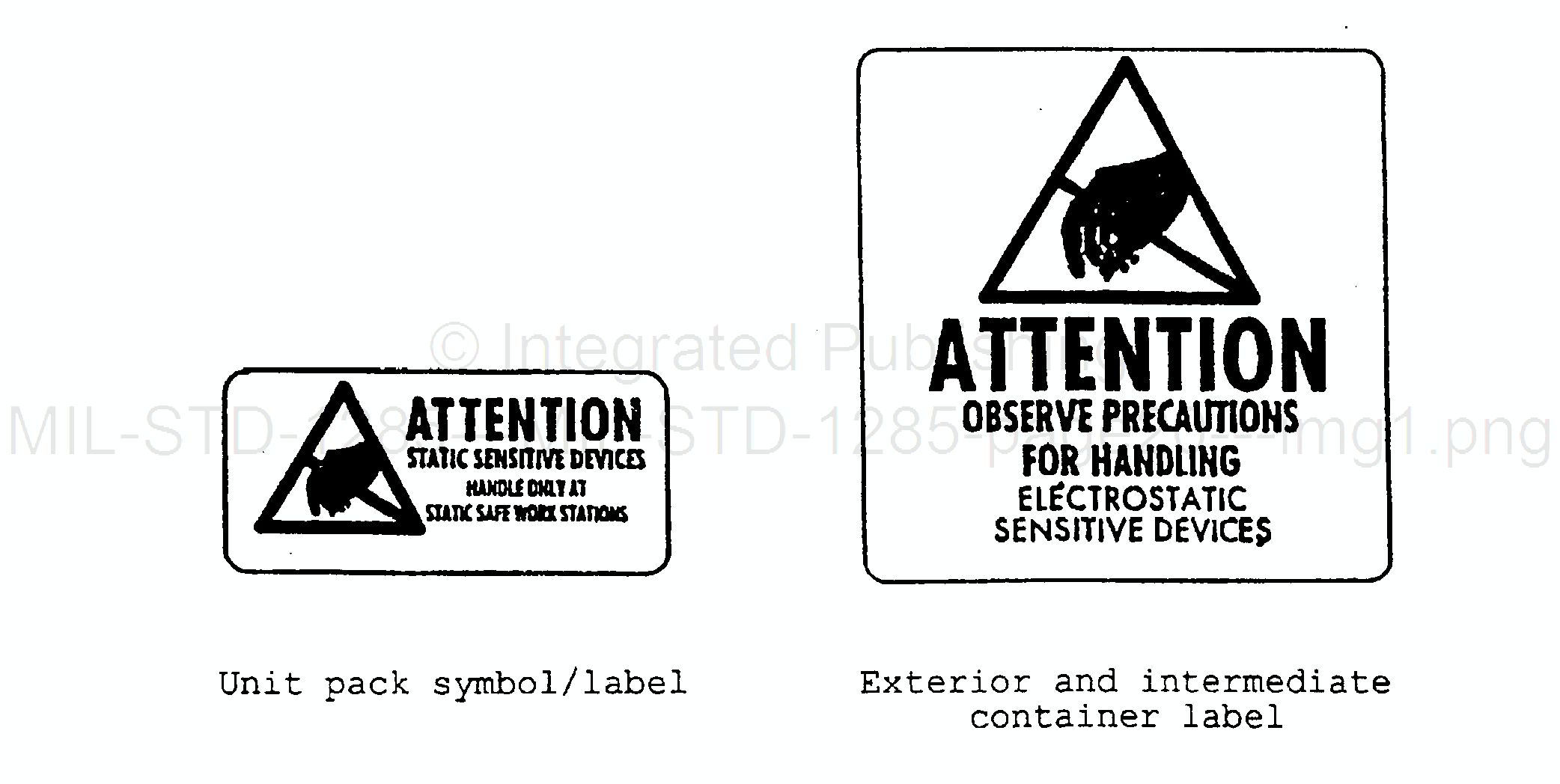

FIGURE 2.  ESD sensitive devices attention symbols and labels.

5.5  Security classification.  When required by contract or purchase order, classified items shall be marked in a conspicuous manner to provide notice that the item(s) are subject to security restrictions.

5.6  W arranted items.  When specifically required by a contract statement of work or other contract clause, warranted items shall be marked in a conspicuous location to give notice that the item(s) are subject to warranty. The marking shall contain, as a minimum, the statement "WARRANTED ITEM" and the period or conditions of the warranty (such as hours of operation, cycles of operation, time since manufactured) (see figure 3).

WARRANTED ITEM

This item is under warranty until                 1

WARRANTED ITEM

This item is under warranty until               2

1.  Indicates expiration date.

2.  Indicates condition of use (such as hours of operation, time since manufacture).

NOTE:  These examples are provided as a guide only and should not be considered mandatory.

FIGURE 3.  Example of warranty marking.

12
